mustangproject/doc/development_documentation.md

New build

Target platform is java 1.7

Build

Toecount is now part of the package which can be build with

mvn clean package

Eclipse

Eclipse XPath Evaluation plugin from the Eclipse Marketplace provides a very handy view to apply XPath on a XML file, useful e.g. when you try XPath expressions or you only have the Xpath, not the line number, to a problem.

To be able to validate against schema files, enter Settings|XML|XML Catalog and add the location of e.g. zugferd2p0_en16931.xsd, which will resolve to the key (namespace) urn:un:unece:uncefact:data:standard:CrossIndustryInvoice:100, just as ZUGFeRD1p0.xsd will provide the key for urn:ferd:CrossIndustryDocument:invoice:1p0

Test

package -Dmaven.surefire.debug="-Xdebug -Xrunjdwp:transport=dt_socket,server=y,suspend=y,address=8001 -Xnoagent -Djava.compiler=NONE" can be used as debug configuration goal in Eclipse. In that case you can set breakpoints in tests.

Validate

ZUV can be used to validate generated files.

Deployment

A section in Maven's settings.xml is needed, in Linux (and MacOS) that's at ~/.m2/settings.xml

As „servers“, enter the following

   <servers>
    <server>
      <id>github</id>
      <password>GITHUB-TOKEN</password>
    </server>
   </servers>

The whole settings.xml then looks e.g. like this

<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0
                          https://maven.apache.org/xsd/settings-1.0.0.xsd">
      <localRepository/>
      <interactiveMode/>
      <usePluginRegistry/>
      <offline/>
      <pluginGroups/>
      <servers>
        <server>
      	<id>github</id>
      	<password>TOKEN</password>
        </server>
      </servers>
      <mirrors/>
      <proxies/>
      <profiles/>
      <activeProfiles/>
</settings>

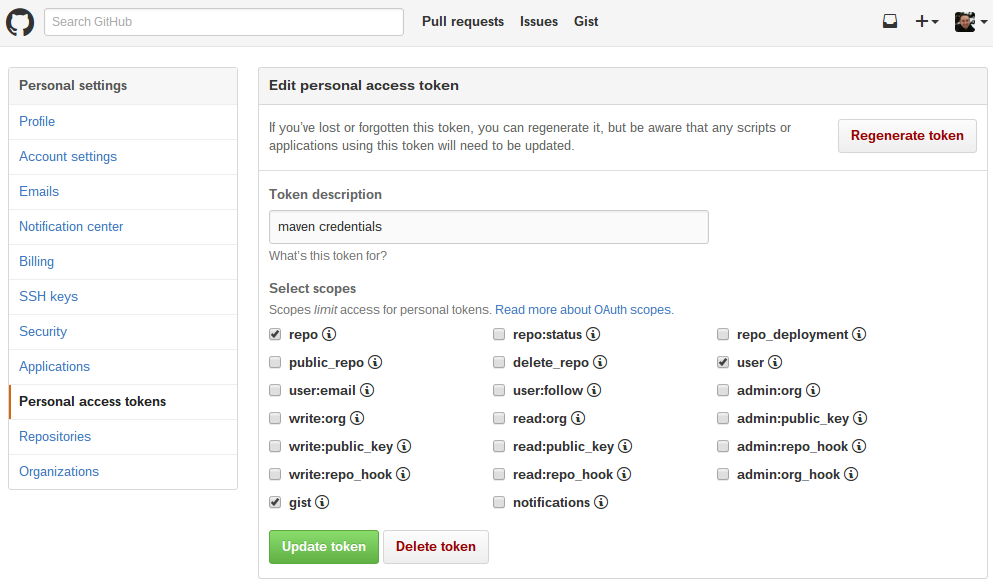

The password is generated on github. See the following screenshot:

Sign in in GitHub and click on the profile picture -> Settings. Now just generate a new token and set the checkboxes from the screenshot. The Token-ID is the password.

Integrate before release

If you added functionality which you need to test in another project before a new version of Mustang is released you can install the jar you just generated in your target branch in your local maven cache so it gets picked instead of the maybe not yet even existing new release version:

mvn install:install-file -Dfile=mustang-1.7.6-SNAPSHOT.jar -DgroupId=org.mustangproject.ZUGFeRD -DartifactId=mustang -Dversion=1.7.6 -Dpackaging=jar -DgeneratePom=true

Release

You will need a git client on the console, if that's available can e.g. be checked with "git --version" . Change to the root of the repo.

Change to the project directory and run

• mvn clean install confirm javadoc is OK with
• mvn javadoc:javadoc. If that works you can
• clean the release with mvn release:clean and prepare the release with

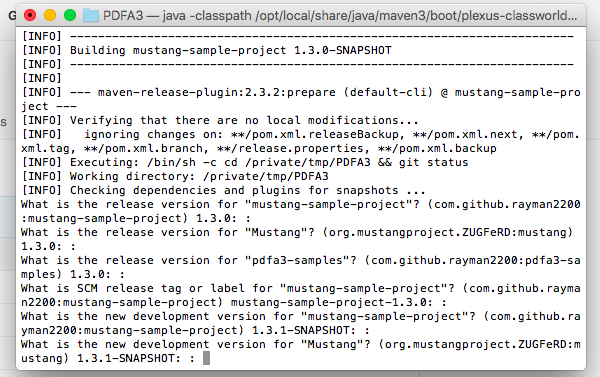

• mvn release:prepare -DignoreSnapshots=true and enter the version numbers.
• After that is through you can create a new release via mvn release:perform -Dmaven.java.skip=True.This will also update the maven repo.

Afterwards you can access the release page and update the documentation, e.g. upload the jar, the jar javadoc and ZugferdDev. You can also enter a changelog and a better title.

Release process

• Update documentation
• write/translate announcement
• release via/for mvn
• Publish a github release
• update mustangproject.org RE
  • version number and release date
  • sample file?
  • Deployment jar
• put announcement on usegroup
• email the mailing list
• freshcode.club
